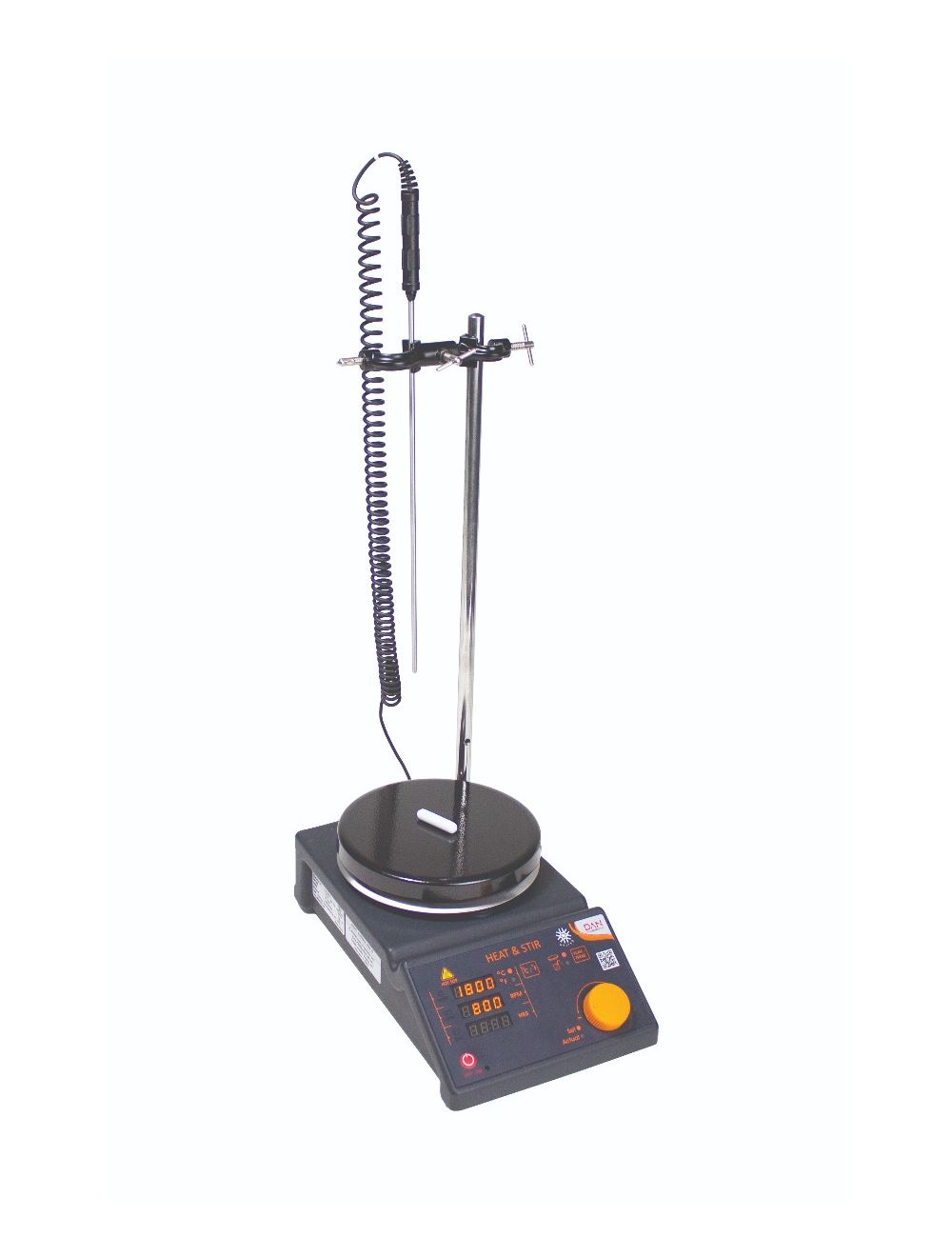

Digital Hot Plate, Magnetic Stirrer, CSA
This digital hot plate with magnetic stirrer features a temperature probe that sits directly in the flask or beaker, allowing for more precise heating of solutions. In addition to double PT sensors, the unit is designed with a one-knob digital controller for temperature, RPM and time, each with an independent LED display. For enhanced safety and ease of unsupervised operation, a built-in alarm audibly signals the completion of the user-allotted time cycle. In the event of malfunction, the display will indicate an error code for quick diagnosis and resolution.
The unit’s heating plate measures 6 inches in diameter to accommodate beakers and flasks up to 2000ml in capacity, and is composed of scratch and chemical resistant stainless steel with a ceramic coating. Its durable aluminum housing is thermally insulated, keeping the device relatively cool to the touch during operation. CSA approved.
Included accessories:
• Stainless steel rod, 400mm long
• PT100 sensor probe, 12mm in diameter
• Magnetic stir bar, 35mm x 9mm
• Boss head clamp
Technical specifications:
• Operates on 115V / 60 Hz
• Maximum stir speed: 1500 RPM
• Heat output: 650 W • Temperature range: 0-350°C (can be displayed in C or F)
• Adjustable safety cutoff range: 50-400°C
• Hot top indicator for temperatures above 50°C, even when switched off
• Display can be toggled between hotplate and probe temperature
This digital hot plate with magnetic stirrer features a temperature probe that sits directly in the flask or beaker, allowing for more precise heating of solutions. In addition to double PT sensors, the unit is designed with a one-knob digital controller for temperature, RPM and time, each with an independent LED display. For enhanced safety and ease of unsupervised operation, a built-in alarm audibly signals the completion of the user-allotted time cycle. In the event of malfunction, the display will indicate an error code for quick diagnosis and resolution.
The unit’s heating plate measures 6 inches in diameter to accommodate beakers and flasks up to 2000ml in capacity, and is composed of scratch and chemical resistant stainless steel with a ceramic coating. Its durable aluminum housing is thermally insulated, keeping the device relatively cool to the touch during operation. CSA approved.
Included accessories:
• Stainless steel rod, 400mm long
• PT100 sensor probe, 12mm in diameter
• Magnetic stir bar, 35mm x 9mm
• Boss head clamp
Technical specifications:
• Adjustable safety cutoff range: 50-400°C
• Hot top indicator for temperatures above 50°C, even when switched off
• Display can be toggled between hotplate and probe temperature
| Function | Heating and Stirring |
| Capacity | 2 L |
| Plate Construction | Stainless Steel Coated with 304 Glass Ceramic |
| Plate Size | 5 7/8 in x 5 7/8 in (150 mm x 150 mm) |
| Temperature Range | 0°C – 350°C (can also be displayed in F) |
| Speed Range | 50 rpm – 1,500 rpm |
| Calibration | Temperature calibration |
| Control | Digital |
| Dimensions | 10.7 in x 6.3 in x 4 in (273mm x 160mm x 102mm) |
| Display | LED |
| Net Weight | 7.27 lb (3.3 kg) |
| Power | 115V, 60Hz |
| Power Consumption | 18 W |
| Heat Output | 650 W |
| Safety Certification | CSA Approved |
| Temperature Probe | PT100 |
| Temperature Stability | +/-1% |
| Timer | 1 minute – 99 hours, 59 minutes |
| Working Environment | 40°C, 80% Relative Humidity |
