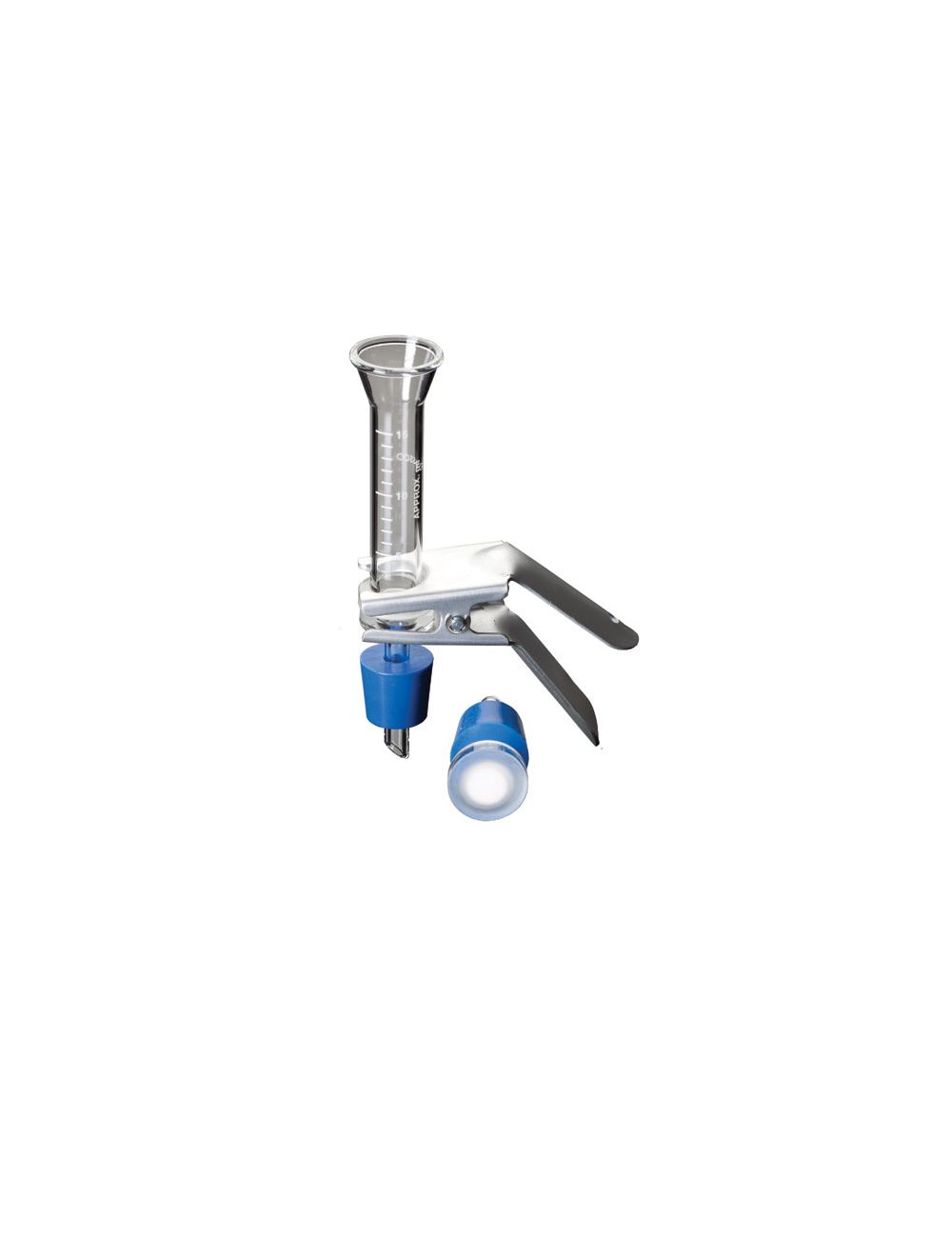

Filtration, Microanalysis Vacuum Filter Holder Set, 25mm with Fritted Glass Filter Support

Designed for particulate or biological contamination analysis of small volumes using a vacuum filter. Includes a fritted glass filter support and No. 5 perforated silicone stopper for easy attachment to a vacuum filtering flask. Membrane filters are not included. Thick prefilters or laminated filters will not seal in this holder, and it is not autoclavable with membrane filters installed. Unlaminated PTFE or PVDF membranes are recommended for solvent applications.

Complete set includes a borosilicate glass funnel and base, fritted glass filter support, anodized aluminum spring clamp, and silicone stopper. Parts are also available separately.

Specifications
Materials:
Borosilicate glass funnel and base; anodized aluminum spring clamp; fritted glass filter support; silicone stopper Filter Diameter:
25mm
Filtration Area:
2.5cm2
Capacity:
Funnel: 15ml
Outlet Fitting:
No. 5 perforated silicone stopper mounts in standard 125ml filtering flask
Dimensions:
Height: 15.2cm
Diameter: 2.5cm
