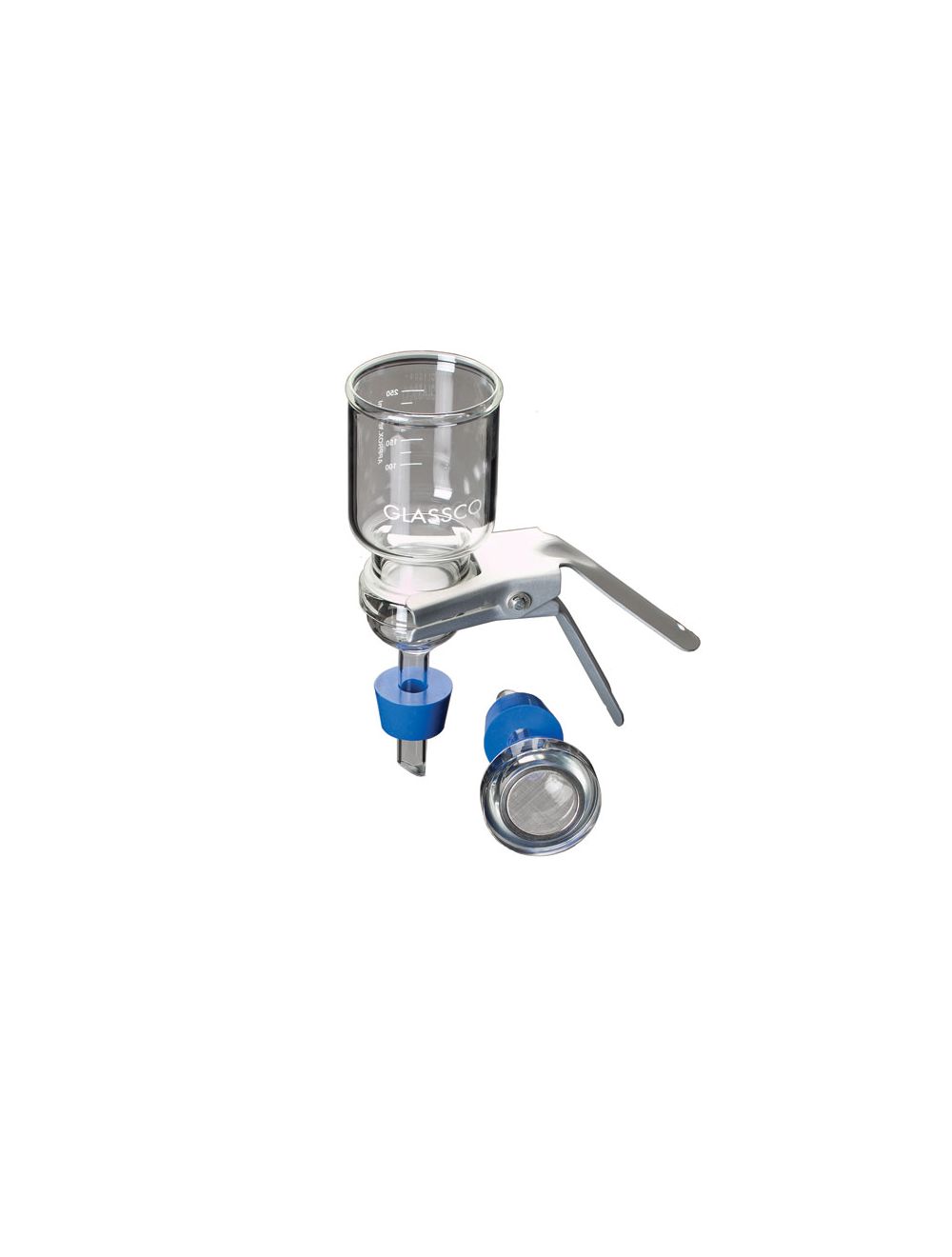

Filtration, Vacuum Filter Holder Set with Stainless Steel Screen, 47mm
Designed for analyzing particulate contamination of hydraulic fluids and oils using gravimetric or particulate counting methods, and can be used in exfoliative cytology applications. Complete set includes a borosilicate glass funnel and base, anodized aluminum spring clamp, stainless steel support screen, PTFE gasket, and perforated silicone stopper. Parts are also available separately.
Specifications
Materials:
Borosilicate glass funnel and base; stainless steel screen filter support; anodized aluminum spring clamp; silicone stopper
Filter Diameter:
47mm
Filtration Area:
9.6cm2
Capacity:
Funnel: 300ml
Prefilter Diameter:
Thick Depth Prefilter: 35mm
Membrane Prefilter: 47mm
Outlet Fitting:
6mm (1/4") O.D. tubulated cap sidearm to vacuum
Dimensions:
Height: 22.9cm
Diameter: 7.6cm
Sterilization Method:
30 UV sterilize or autoclave without filter in place
Properties of Glassware and Plasticware
