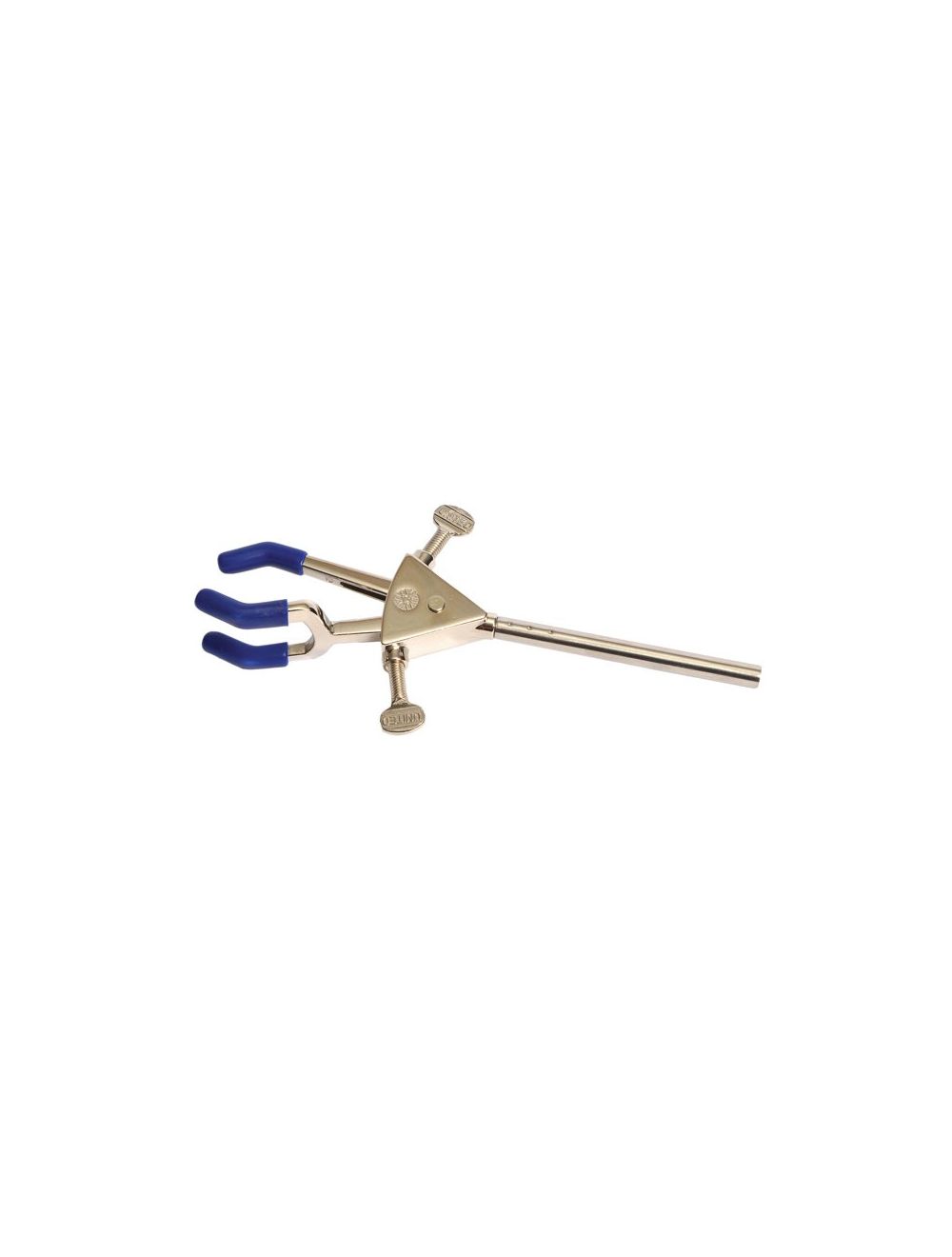

LabLok™ 3-Prong Heavy Duty Extension Clamps
LabLok™ 3-Prong Heavy Duty Extension Clamps feature durable electroplated zinc alloy construction. Offered in both single wing-nut and dual thumbscrew adjustable configurations, the prongs provide a wide grip capacity and gradual adjustment for grip control.
These LabLok clamps are designed with extension rods that can attach to support stand apparatus. The grip sleeves are non-slip vinyl and come with fiberglass sleeves for temperatures above 100°C. Clamps are available in small, medium, and large sizes.
- Durable electroplated zinc alloy construction
- Wide range of grip adjustability
- Three prong has gradual adjustment for grip control
- Vinyl sleeves for non-slip grip and fiberglass sleeves for temperatures above 100°C
- Available in single and dual adjustable configurations
- Available in small, medium, and large sizes
Note: additional connector must be purchased for attaching clamps to support stand apparatus.
LabLok™ 3-Prong Heavy Duty Extension Clamps feature durable electroplated zinc alloy construction. Offered in both single wing-nut and dual thumbscrew adjustable configurations, the prongs provide a wide grip capacity and gradual adjustment for grip control.
These LabLok clamps are designed with extension rods that can attach to support stand apparatus. The grip sleeves are non-slip vinyl and come with fiberglass sleeves for temperatures above 100°C. Clamps are available in small, medium, and large sizes.

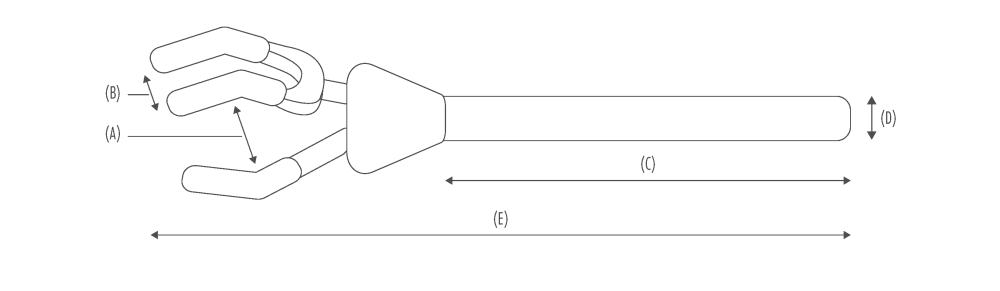

| Item # | Size | Adjustment Type | (A) Min-Max Grip Size (mm) | (B) Prong Width (mm) | (C) Arm Length (mm) | (D) Arm Diameter (mm) | (E) Overall Length (mm) | Quantity per Pack |
|---|---|---|---|---|---|---|---|---|
| CLHS01 | Small | Single | 0 - 23 | 10 | 102 | 8 | 160 | 1 |
| CLHS02 | Medium | Single | 0 - 69 | 16 | 127 | 11 | 218 | 1 |
| CLHS03 | Large | Single | 0 - 102 | 28 | 127 | 11 | 254 | 1 |
| CLHD01 | Small | Dual | 0 - 45 | 10 | 100 | 8 | 170 | 1 |
| CLHD02 | Medium | Dual | 0 - 69 | 18 | 127 | 11 | 230 | 1 |
| CLHD03 | Large | Dual | 0 - 102 | 28 | 127 | 11 | 266 | 1 |
| CLHD04 | Med- long arm | Dual | 0 - 69 | 18 | 304 | 12 | 405 | 1 |
| CLHD05 | Large- long arm | Dual | 0 - 102 | 28 | 305 | 12 | 445 | 1 |
